GE2291B sandwich fabric knitting machine
Model No.︰GE2291B
Brand Name︰Yongguang
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Product Description
APPLICATION：

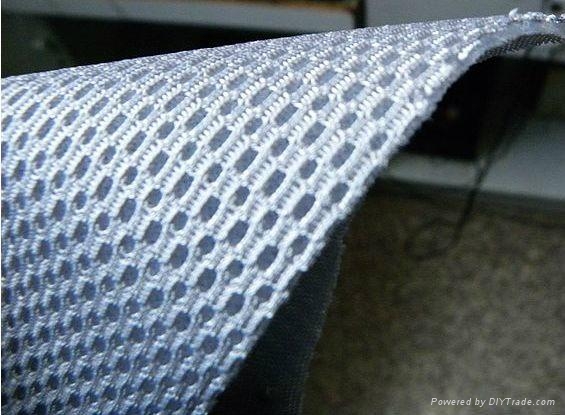

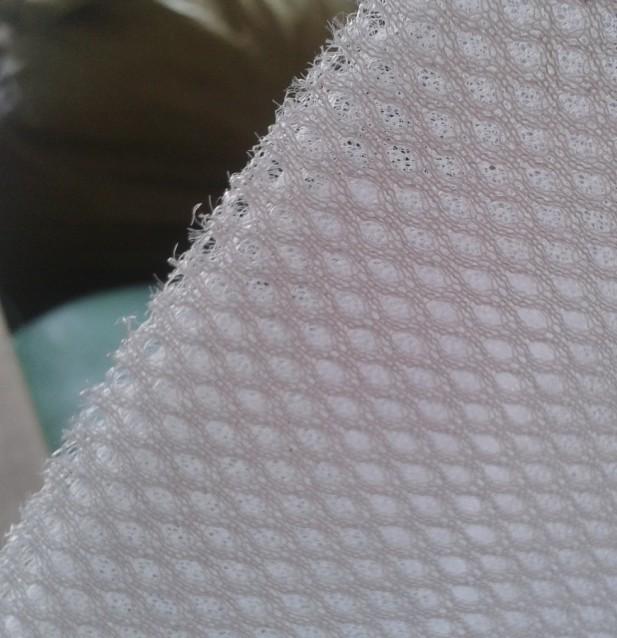

The Double-Bar Warp Knitting Machine uses chemical fiber Such as polyester，polyamide，acrylic，polypropylene and viscose or natural fiber such as spinning cotton yarn，blended yarn etc．to produce short-pile fabric with Pile height of 1.5~6mm or space fabric with thickness of 3~12mm．The fabric feels Plump．gentle and won't come off from the base cloth，and is widely used for garments。shoes fabric，cotton blanket，automobile cushion。sofa-cover，bed cloth。side cloth and curtain etc．
|
MAIN TECHNICAL SPECIFICATIONS：
|
||
|
Machine Type
|
E2291/6
（6 Guide Bars）
|
E2291/7
（7 Guide Bars）
|
|
Needle
|
Latch Needle
|
|
|
Gauge
|
E16、E20、E22、E24（Needles/Inches）
|
|
|
Working Width
|
84 ” (2134mm) 、136 ” (3454mm)
154 ” (3911mm) 、170 ” (4318mm)
|
|
|
Number of Guide Bars
|
6 Bars (2 Pile Bars)
|
7 Bars (3 Pile Bars)
|
|
Distance Between Knock-over Bars
|
3~12mm
|
|
|
Beam Support
|
Separate Beam Support
Max. Size of Sectional Beam
For Pile Bars
φ1016×535mm（40＂）
|
Separate Beam Support
Max. Size of Sectional Beam
For Pile Bars
φ765×535mm（30＂）
|
|
Pattern Drive Device
|
N-type Pattern Drive Device in 4 or 6 tempi of Link chains
Or Pattern Cams
|
|
|
Let-off Device
|
Mechanical or EBA Electronic Let-off Device
|
|
|
Density Range
|
4.28~31.22（Courses/CM）
|
|
|
Max. speed
|
800~950(Courses/Min.)
|
650（Courses/Min.）
|
|
Inching Speed
|
20（rpm）
|
|
|
Max. Fabric Batching Diameter
|
φ1270mm
|
|
|
Main Motor Power
|
5.5KW or 7.5KW
|
|
Payment Terms︰ 30% deposit and 70% befire shipment
