Leno mesh bag circular loom

Leno mesh bag circular loom

Model No.︰-

Brand Name︰yongguang

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 set

Inquire Now

Product Description

1

Working widthdouble flat

600-850mm

2

Number of shuttles per machine

4

3

weft density

10-24pcs/10cm

4

Speed

0-120RPM

5

Warp feeding

Motor

6

Inner diameter of Bobbin

38mm

7

Bobbin length

230mm

8

Max. bobbin diameter

100mm

9

Number of Warp yarns

512pcs

10

Normal rating of main motor

2.2kw

11

lift motor power :

22N

12

winding motor power:

Torque motor

13

Total power

3Kw

14

Installed size (mm)

10500* 2400* 3200

15

weight

1700KGS

Payment Terms︰ TT

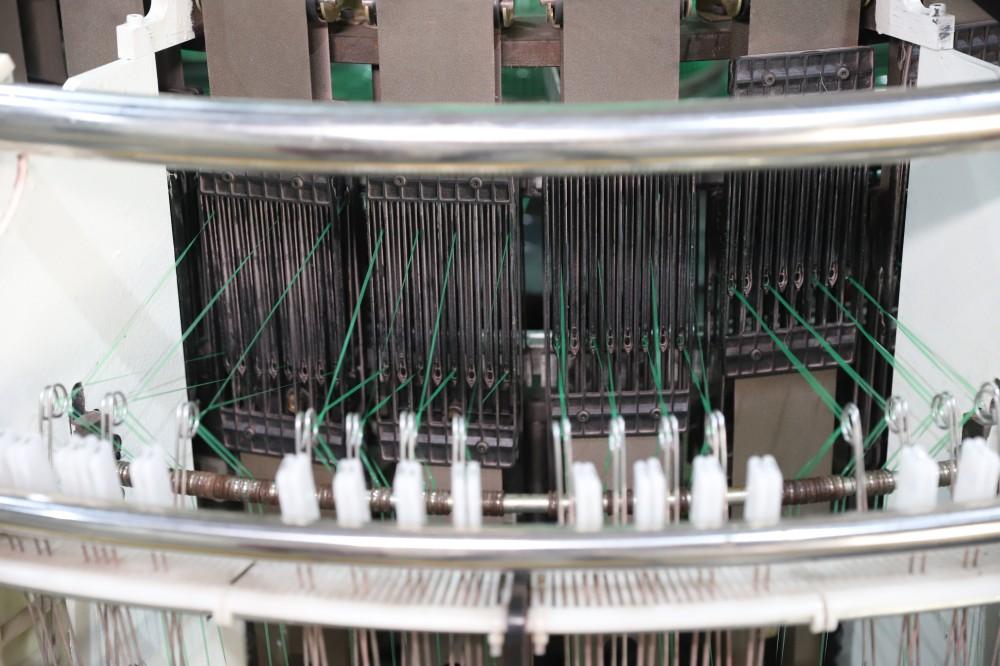

Product Image
