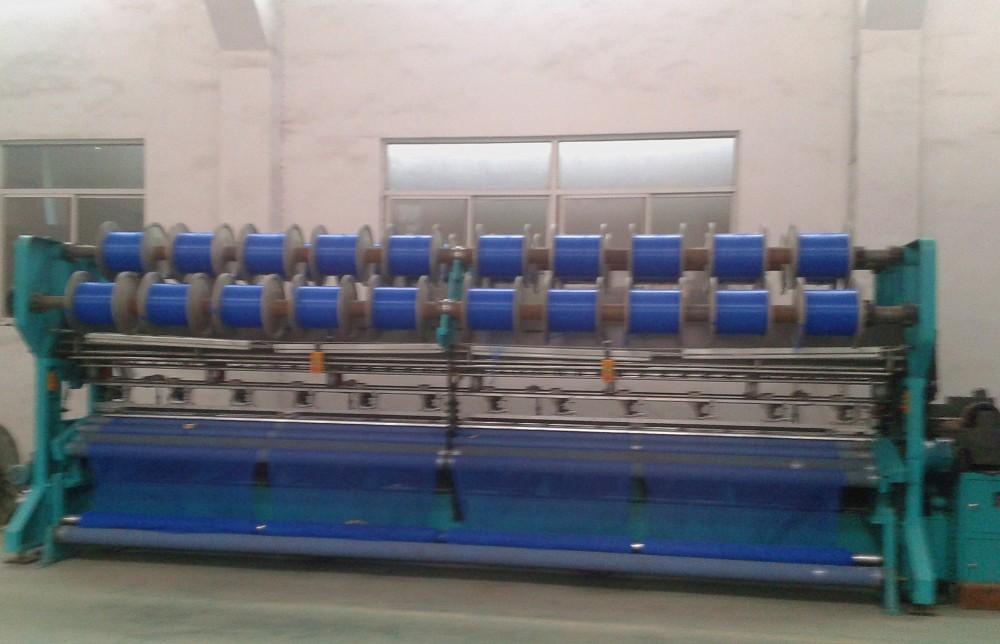

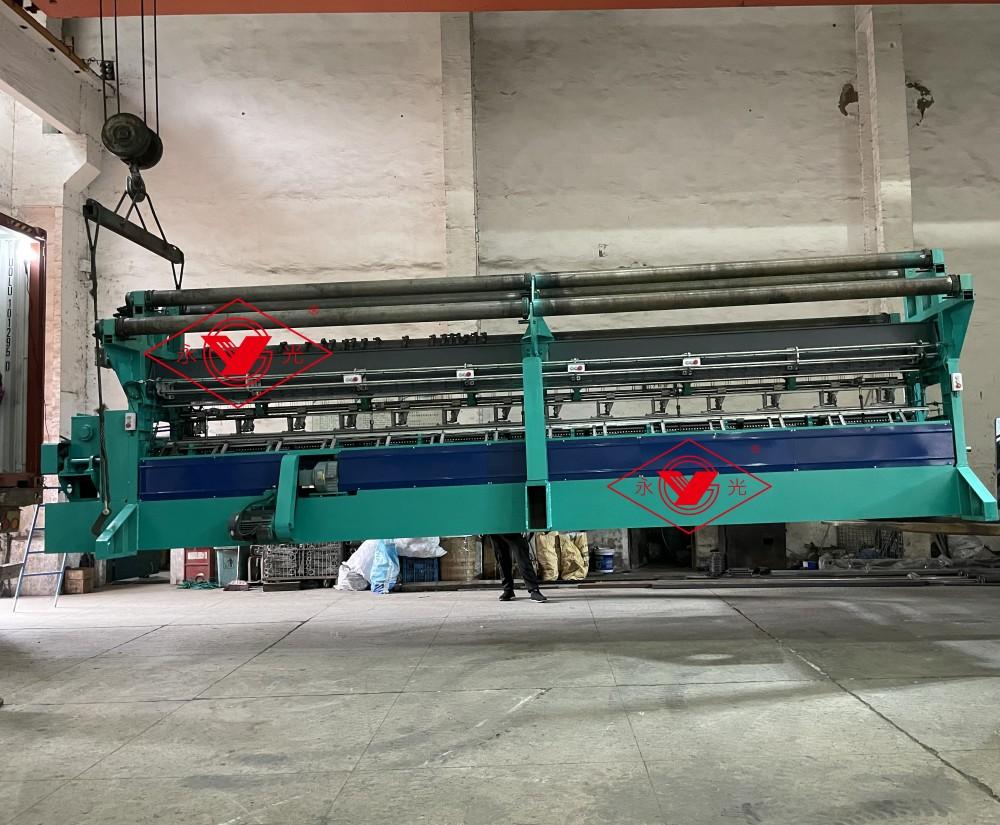

SRM 264 SINGLE NEEDLE BED WARP KNITTING MACHINE SUITABLE FOR MANUFACTURING PLASTIC NET, SUCH AS SHADE NET, BUILDING-SAFETY NET AND WIND-PROOF NET,ANTI-BIRD NET BY USING PP,PE,HDPE AS RAW MATERIALS.
|
MODEL
|
SRM 264(6M )
|
SRM330(8M )
|
|
SINGLE NEEDLE BAR KNITTING MACHINE
|
|
NEEDLE TYPE
|
EMBEDDED LATCH NEEDLE ,EASY TO REPLACE NEEDLE
|
|
GAUGE
|
E6
|
|
WORKING WIDTH（MM）
|
6500MM
|
8500MM
|
|
YARN LET-OFF ROLLERS
|
3GROUPS
|
3GROUPS
|
|
LET-OFF ROLLER DRIVE UNIT
|
EBA SYSTEM
|
|
NUMBER OF BARS
|
3BARS
|
|
MAX .FABRIC
TAKE-UP DIAMETER (MM)
|
FREE STANDING BATCHING DEVICE，TORQUE MOTOR CONTROL
|
|
R.P.M.
|
WORKING SPEED 400~500RPM .WITH INVERTER CONTROL
|
|
WITH METER COUNTER ,WITH YARN BREAK STOP DEVICE,NOT INCLUDE CREEL STAND
|
|
MOTOR
|
MAIN MOTOR : 5.5KW（AC）
|
MAIN MOTOR : 7.5KW（AC）
|
|
MACHINE SIZE（MM）
|
8500×2000×2200
|
10500×2000×2200
|
|
MACHINE WEIGHT（KG）
|
12000KGS
|
20000KGS
|
|
CONTAINER
|
40HQ
|
40HQ
|
